5 Pairs/Lot Solar Connectors with 2Pcs Spanner Waterproof Solar Panel Connector SOLAR PV Connector for Solar Cable 2.5/ 4/6Mm2

Product Features

▶【5 Pair Male/Female Connectors】5 pairs solar panel cable connectors (Compatible with connector) (5pcs connector Male and 5pcs connector Female).+ 2pcs Spanners

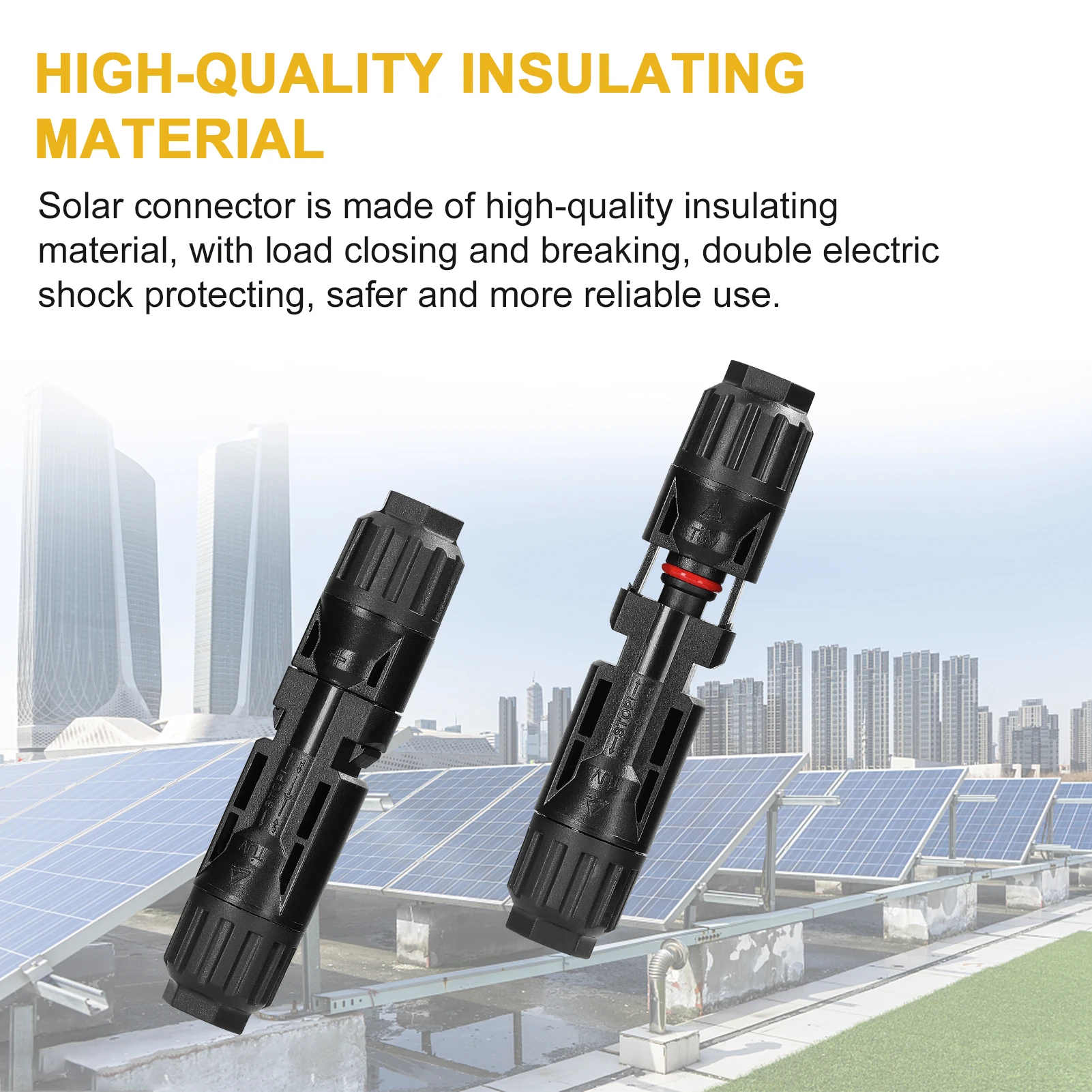

▶【High quality Material】WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!
▶【Widely Compatible With Solar Cable】Compatible with PV cables with different insulation diameters (2.5m㎡--6m㎡).

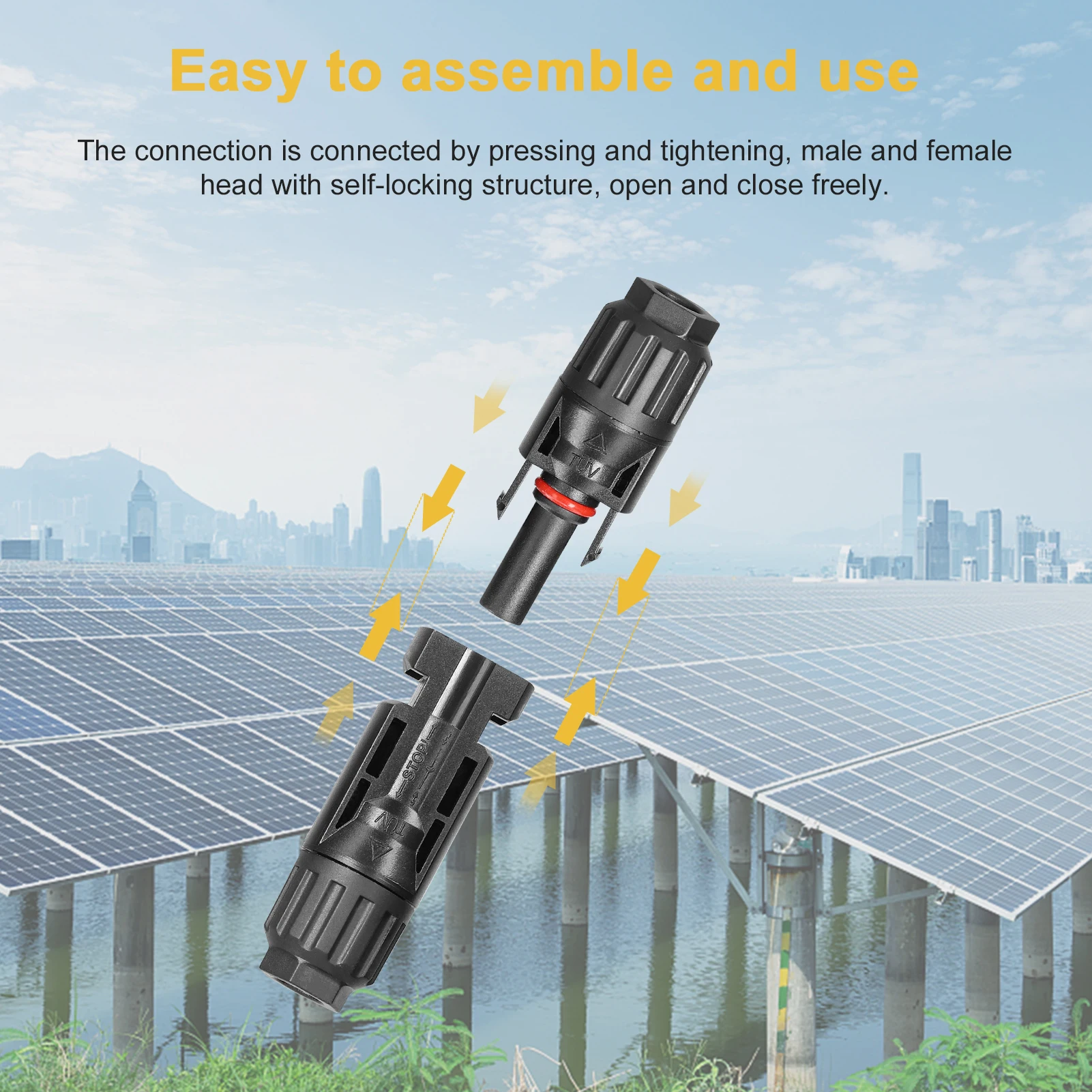

▶【Easy installing】Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.

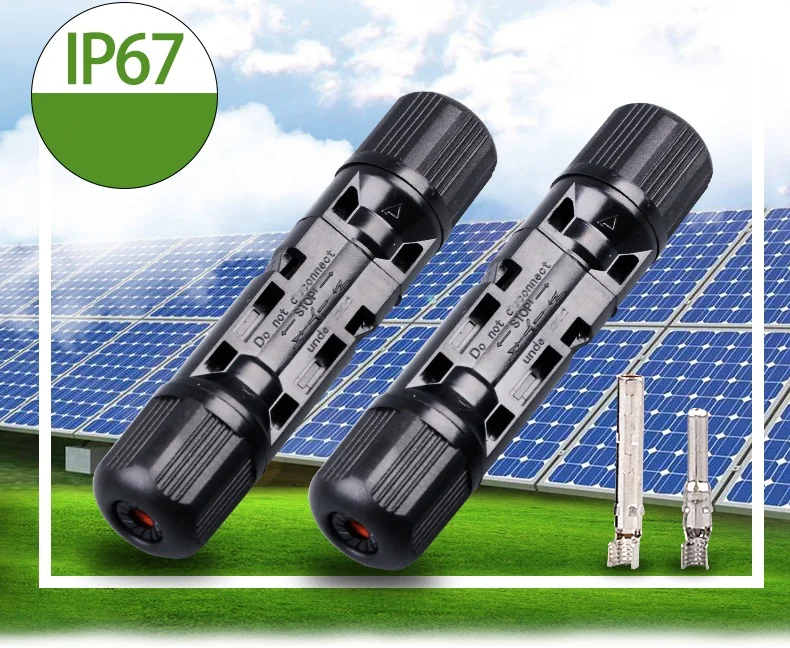

▶【IP67 Professional Waterproof】Good waterproof performance for outdoors usage.

Specifications

* Rated current: 30A (2.5m㎡--6m㎡)
* Rated voltage: 1000V DC
* Connector contact resistance:≤0.5mΩ

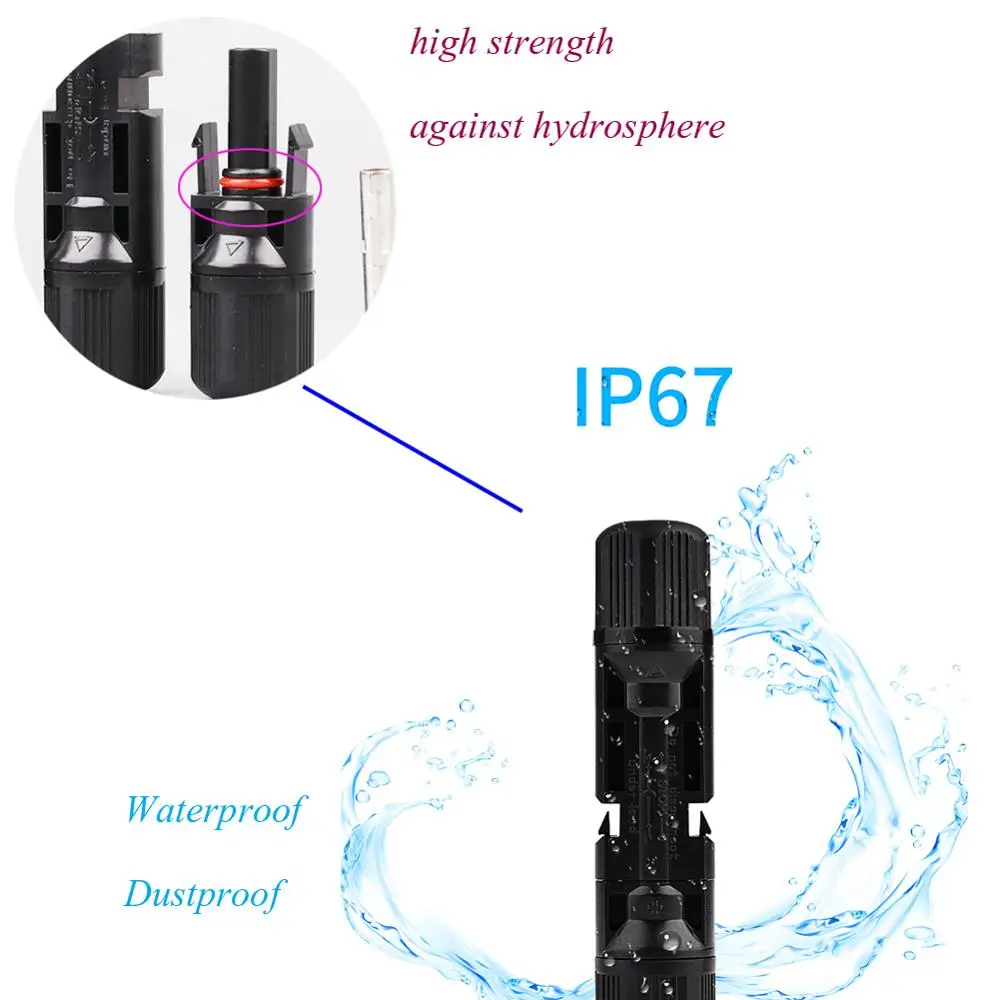

* Degree of waterproof: IP67
* Flammability rating: UL94-V0
* Safety: Class II
* Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )
* Adapter Wire: OD 5mm-7mm

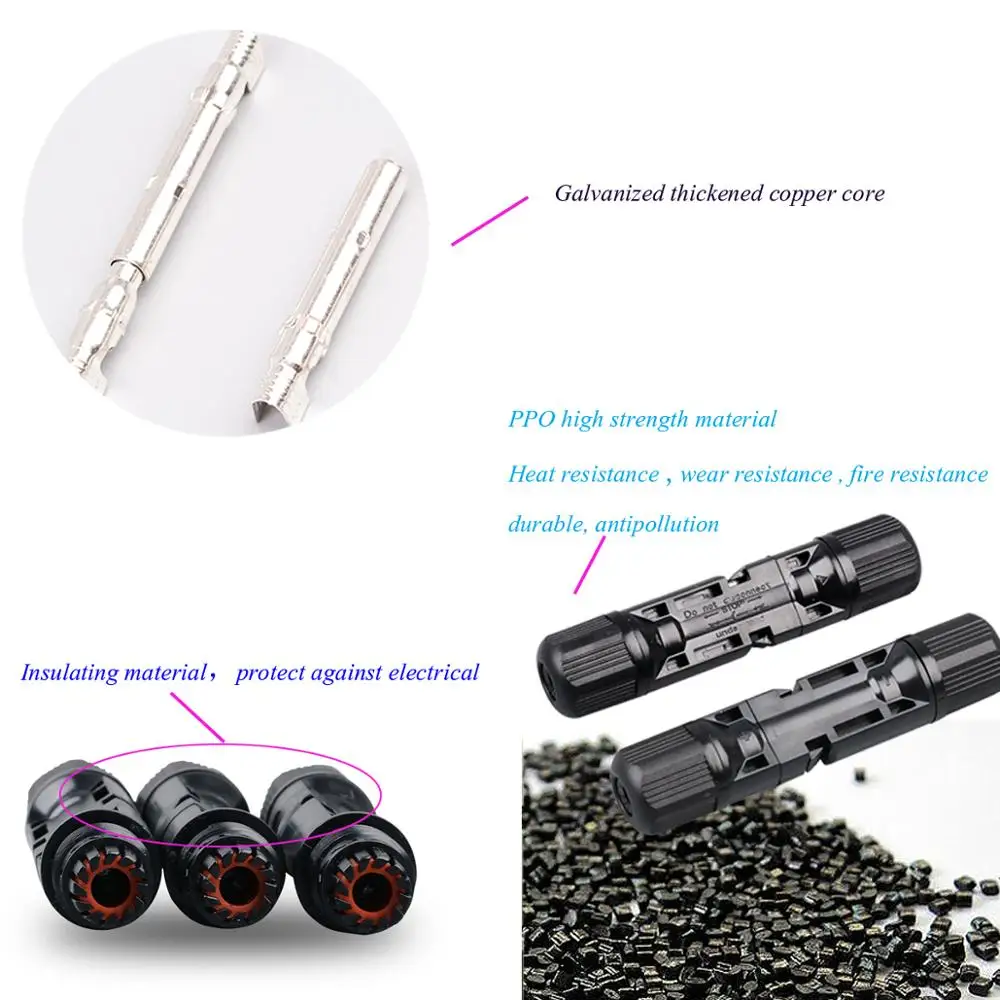

* Connector conductor material: copper, Tin
* Connector Insulation material: PPO/PPE
* Insertion force: less or equal to 50N
* Withdrawal force: over or equal to 50N
* Operating temperature range: -40℃～ +85℃
* Connection: Clamp

Package include

* 5x male connectors
* 5x female connectors
* 5 pairs Solar Connector Pins (male &female) * 2pcs Spanners

Product show:

TYPE A as below:
